    • Product description

    For A Better Inspection Scope

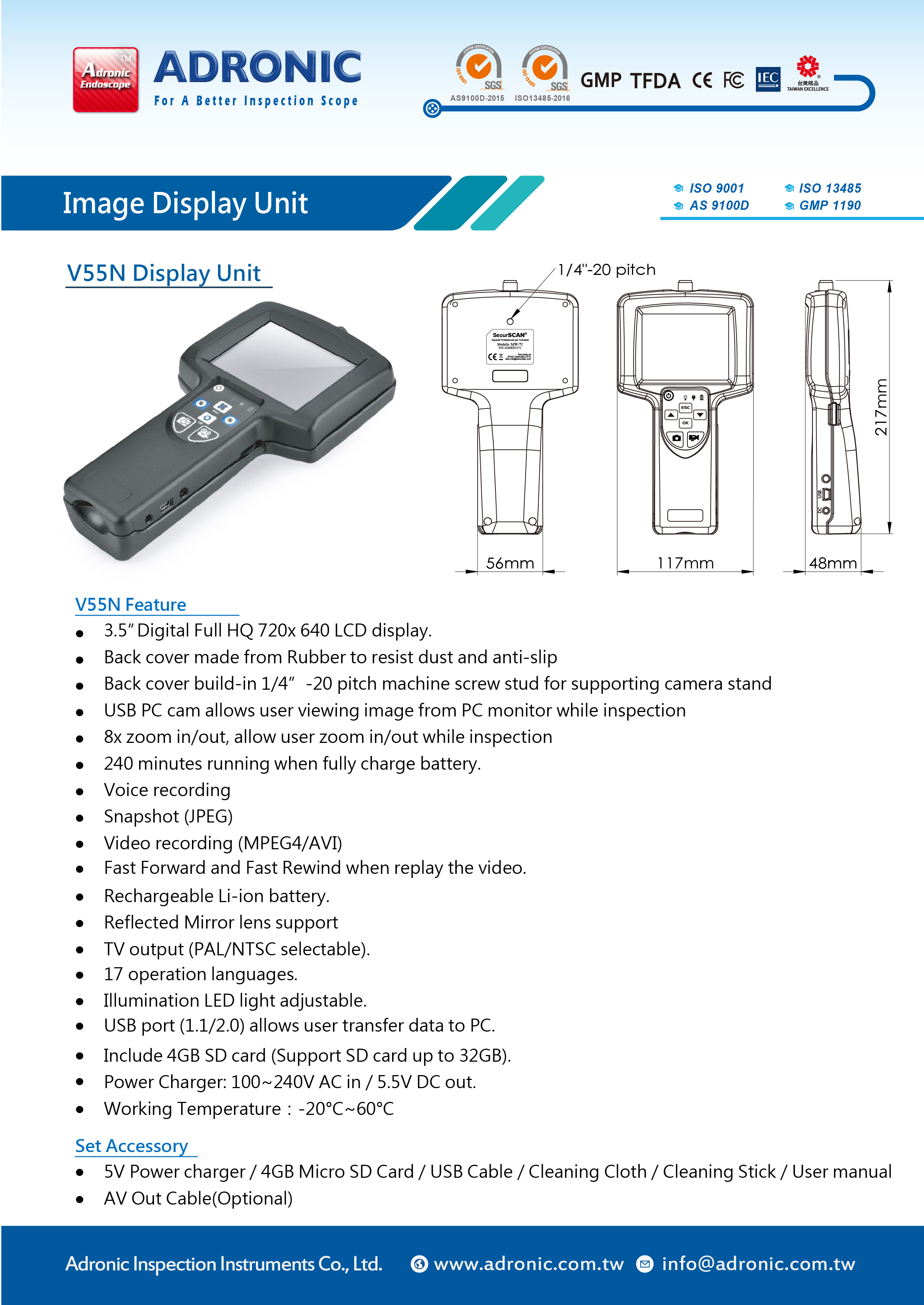

    Model:V55N Display Unit

    Scope of application
    ADRONIC V55N is a unique design for Aviation inspection purpose. It allows image and video transfer to a V55N monitor.  It has a 3.5 inch LCD panel to make snapshot (JPEG), or video MPEG4-AVII)

    Benefit
    ◎ 3.5 inch digital picture quality
    ◎ Portable and removable
    ◎ Efficiency
    ◎ Economic

    Feature
    ◎    3.5” Digital Full HQ 720x 640 LCD display.
    ◎    Back cover made from Rubber to resist dust and anti-slip
    ◎    Back cover build-in 1/4”-20 pitch machine screw stud for supporting camera stand
    ◎    USB PC cam allows user viewing image from PC monitor while inspection
    ◎    8x zoom in/out, allow user zoom in/out while inspection
    ◎    8x zoom in/out, allow user enlarge image while reviewing photos
    ◎    240 minutes running when fully charge battery.
    ◎    Voice recording
    ◎    Built-in Speaker for replaying video with voice.
    ◎    Snapshot (JPEG)
    ◎    Video recording (MPEG4/AVI).
    ◎    Fast Forward and Fast Rewind when replay the video.
    ◎    Rechargeable Li-ion battery.
    ◎    Reflected Mirror lens support
    ◎    TV output (PAL/NTSC selectable).
    ◎    17 operation languages.
    ◎    Illumination LED light adjustable.
    ◎    USB port (1.1/2.0) allows user transfer data to PC.
    ◎    Include 4GB SD card (Support SD card up to 32GB).
    ◎    Power Charger: 100~240V AC in / 5.5V DC out.

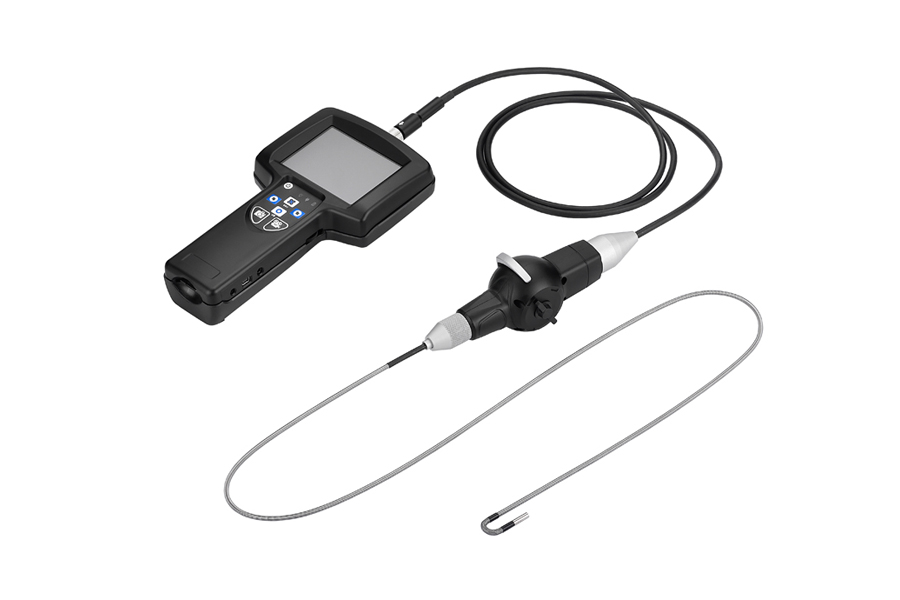

    Application
    ADRONIC V55N Application

    Item

    Specification

    Monitor

    3.5" digital LCD monitor

    Resolution

    720x640 Pixel

    Function

    Support Audio recording (MPEG4),Video recording(AVI) recording and Snapshot(JPEG)

    Operation Language

    Support 17 operation languages

    USB Port

     USB port (1.1/2.0)

    Storage Devices

    Include 4GB SD card (Support SD card up to 32GB)

    Working Temperature

    -20°C~60°C

    Power Charger

    100-240V AC in/ 5V DC out

    Battery

    Rechargeable Li-ion battery(Running time up to 240 minutes when full charge)

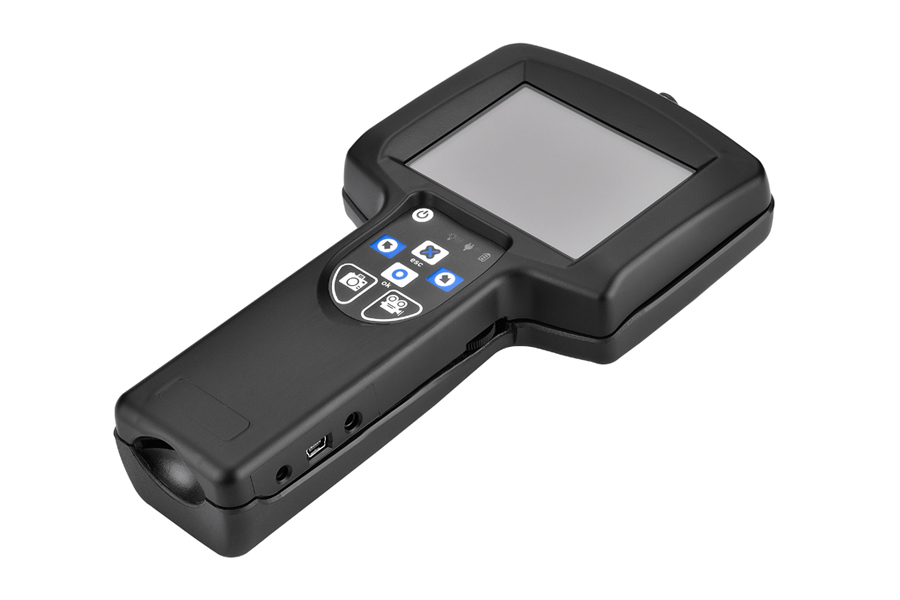

    V55N Display Unit
    View
    Download
    Set Accessory
    ◎5V Power charger / Micro SD Card / USB Cable / Cleaning Cloth / Cleaning Stick /
      User manual
    ◎AV Out Cable(Optional)
