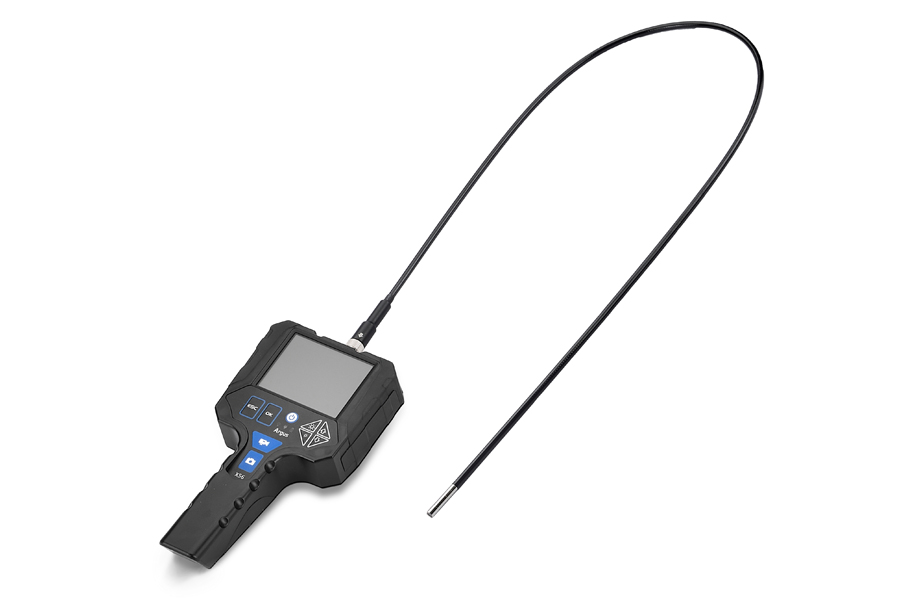

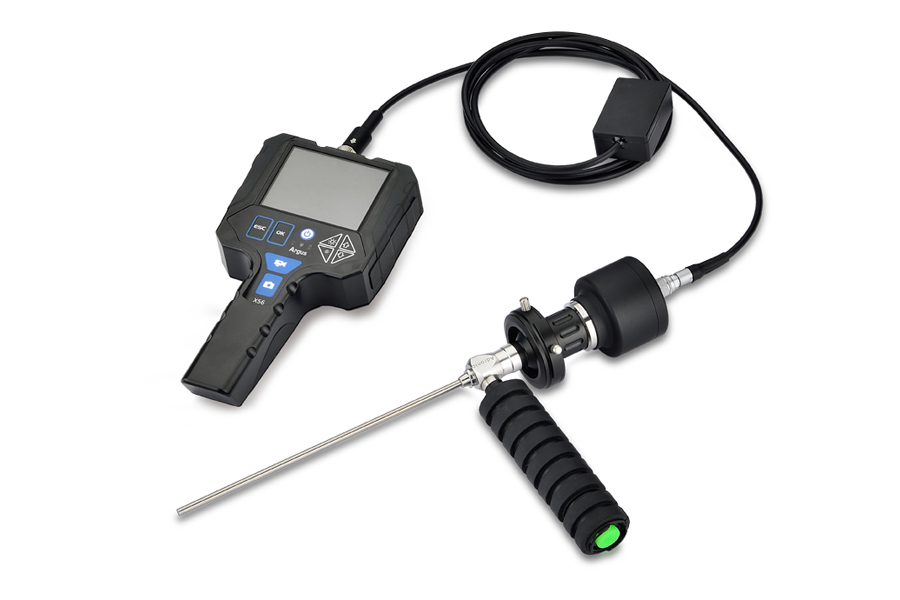

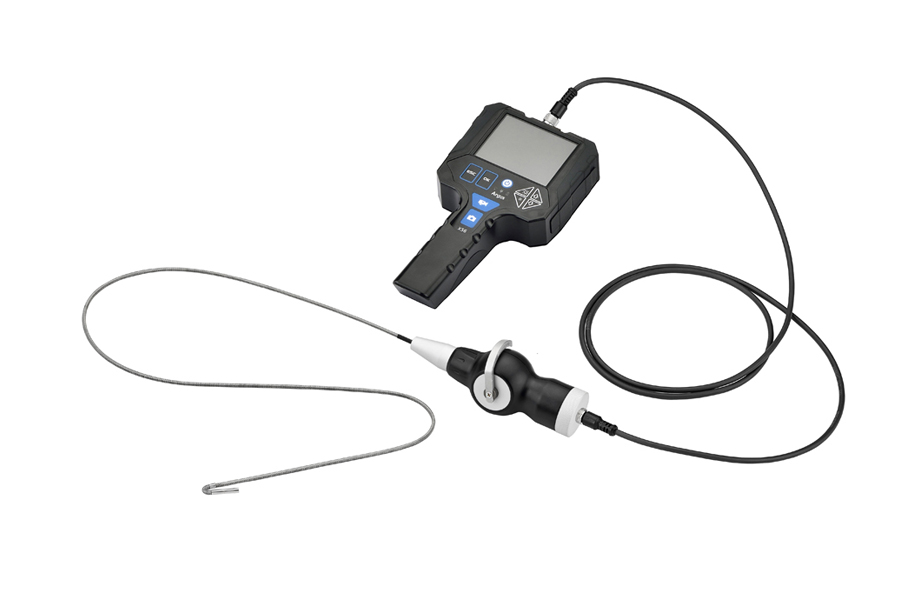

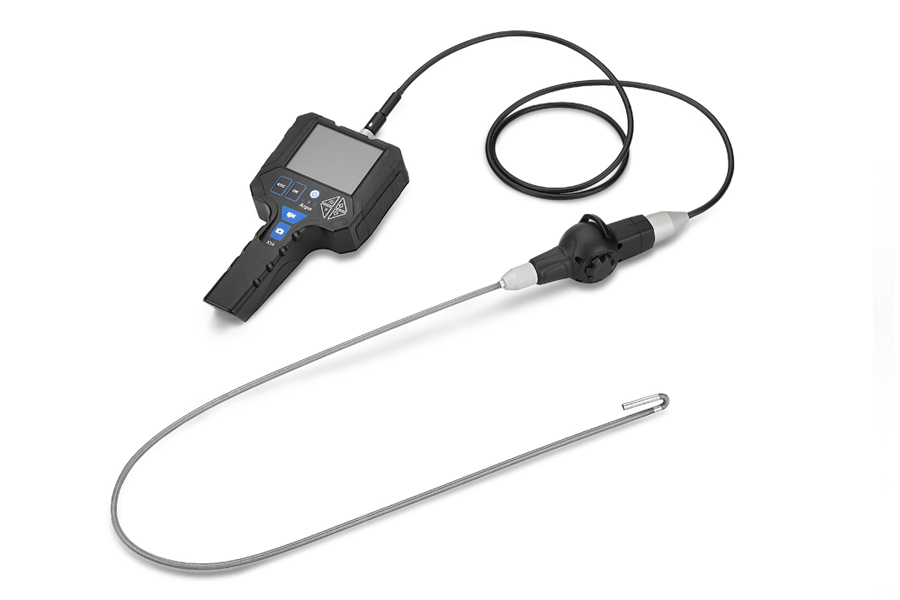

Model:X56 Display Unit

Scope of application
X56 endoscope system is mainly used for inspection, repairing and maintenance. Within 3.5”digital LCD monitor, this unit could connect The screen is clear and stable, also could manually adjust the image size and illumination. X56 enable to support Snapshot, Audio and Video recording to enhance the detection performance.

Benefit
◎  3.5” digital LCD display
◎  Portable and removable
◎  Efficiency
◎  Economic

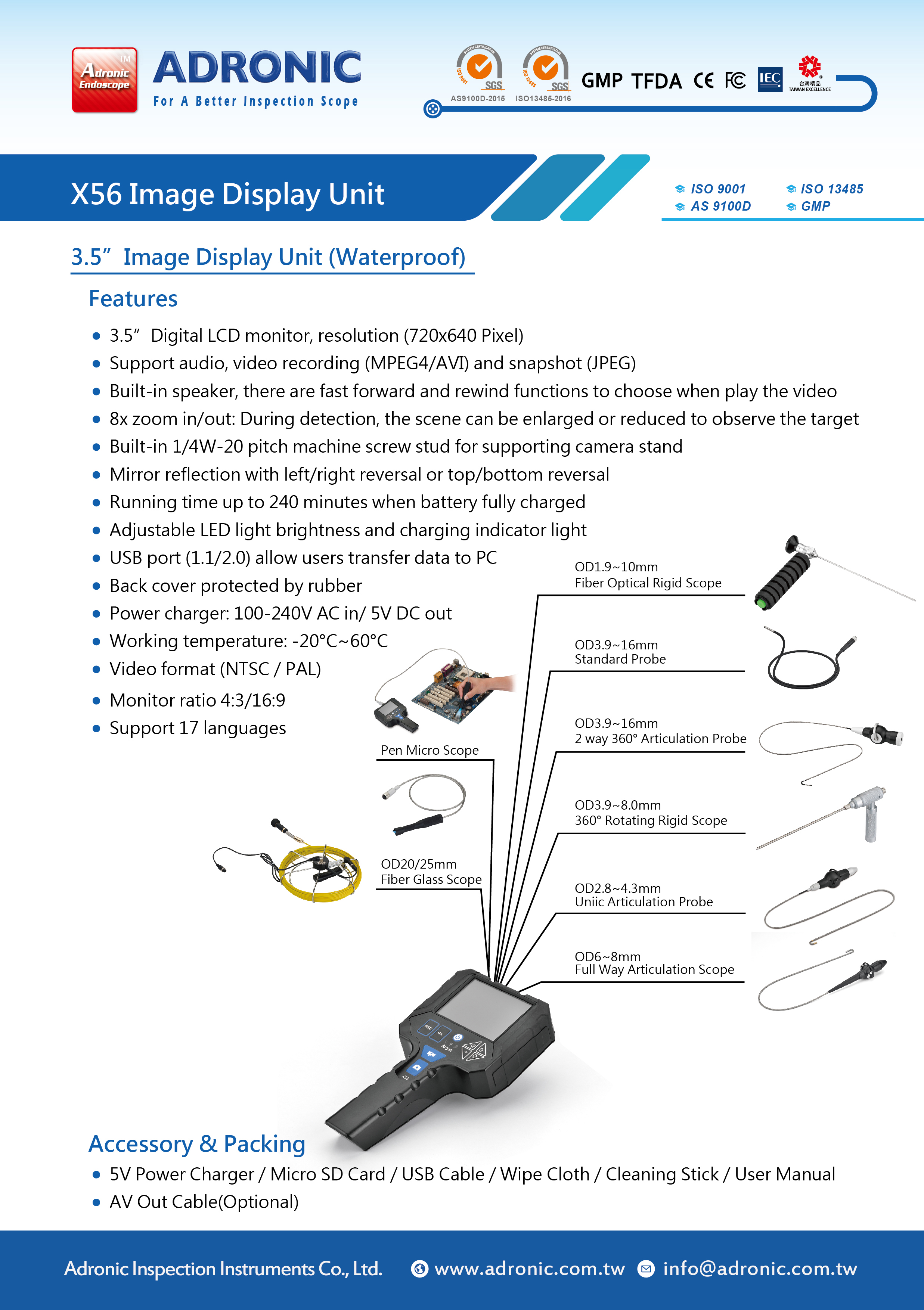

3.5" Image Display Unit / Water Resisted
◎  3.5”Digital High reslotion LCD display.
◎  Support Snapshot (JPEG) and Video recording (MPEG4)
◎  Support replay video/review photo image
◎  Support reflected lens tube allows user to capture positive images when attached a mirror
◎  Support  AV out (PAL/NTSC selectable)
◎  Support 16 operation languages
◎  USB port (1.1/2.0/3.0) allows user transfer data to PC.
◎  Include 1 SD (or mini SD) card, capacity upto 16GB
◎  Battery: Rechargeable Li-ion battery
◎  Illumination LED light adjustable
◎  Power Charger: 100~240V AC in/ 5V DC out
◎  Working temperature: -20°C~60°C
◎  Packaging: Vibration proof Carry Case

Item	Specification
Monitor	3.5" digital LCD monitor
Resolution	720x640 pixels
Function	Support Audio recording (MPEG4),Video recording(AVI) recording and Snapshot(JPEG)
Operation Language	Support 16 operation languages
USB Port	USB port (1.1/2.0/3.0)
Storage Devices	Support SD card up to 16GB
Dimension	117mm * 233mm * 56mm
Power Charger	100-240V AC in/ 5V DC out
Battery	Rechargeable Li-ion battery(Running time up to 240 minutes when full charge)
Working Temperature	-20°C~60°C
Support  AV out	PAL/NTSC selectable
Packaging	Vibration proof Carry Case

Set Accessory
◎5V Power charger / Micro SD Card / USB Cable / Cleaning Cloth / Cleaning Stick /
  User manual
◎AV Out Cable(Optional)
