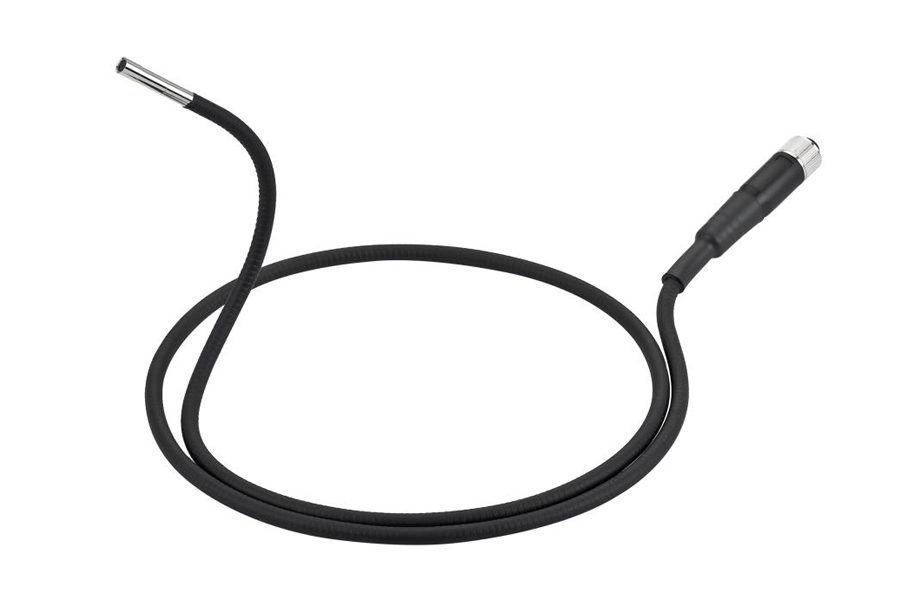

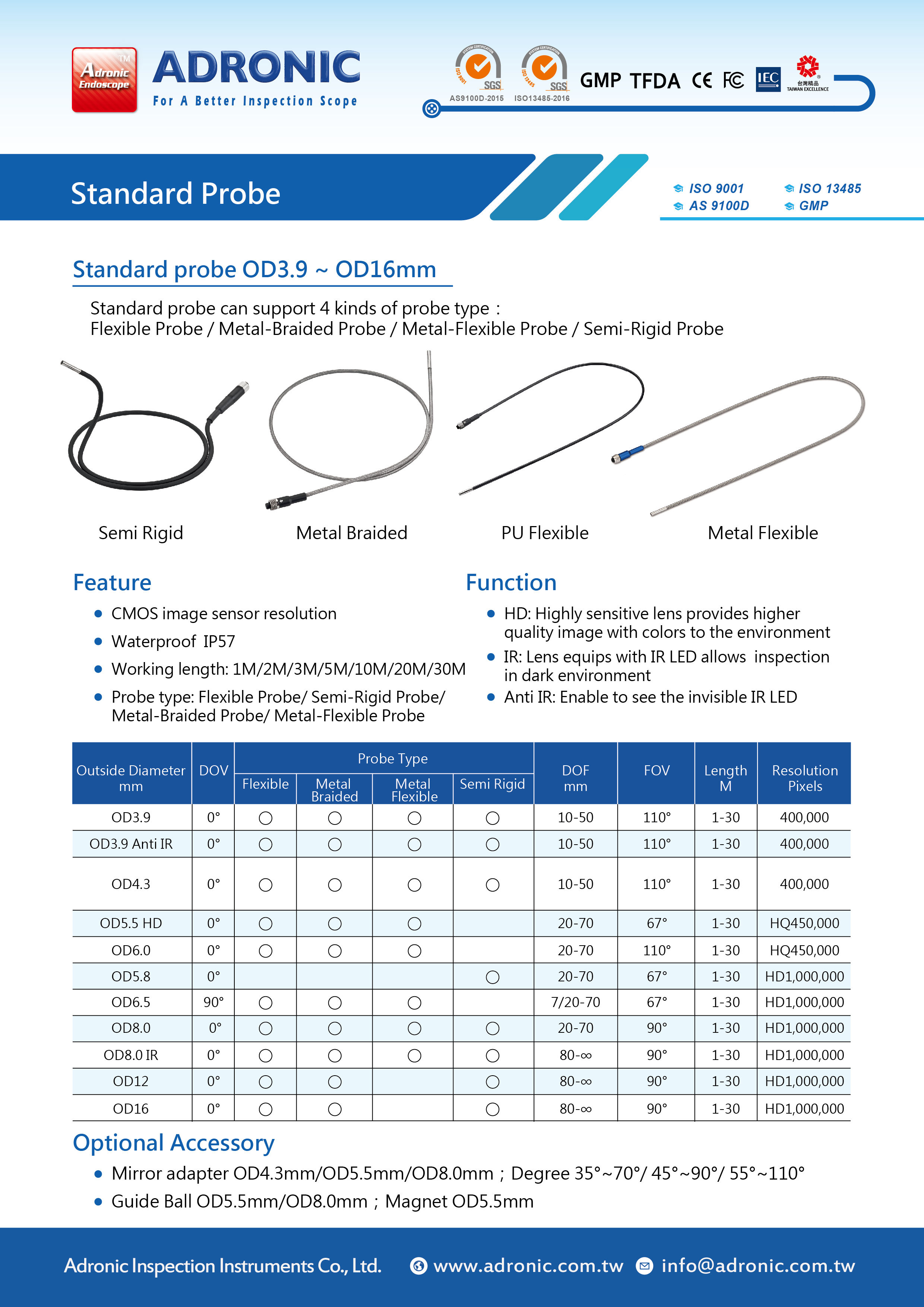

Standard probe OD3.9 ~ OD16mm
◎ Standard probe can support 4 kinds of probe type：

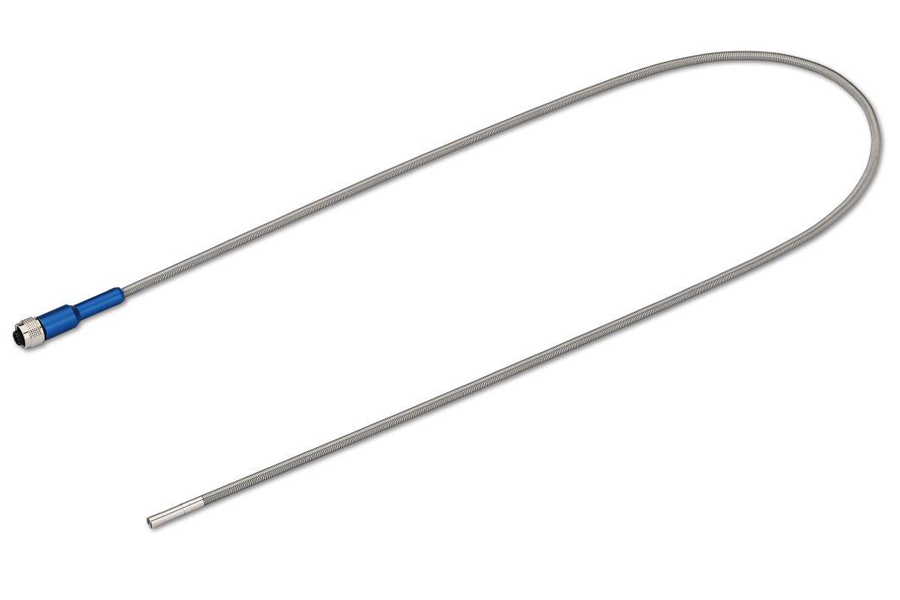

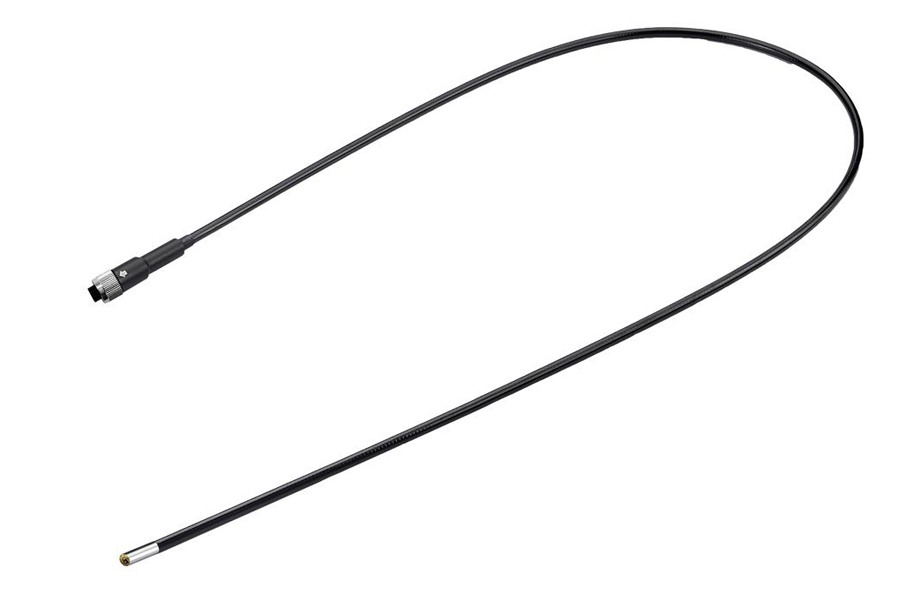

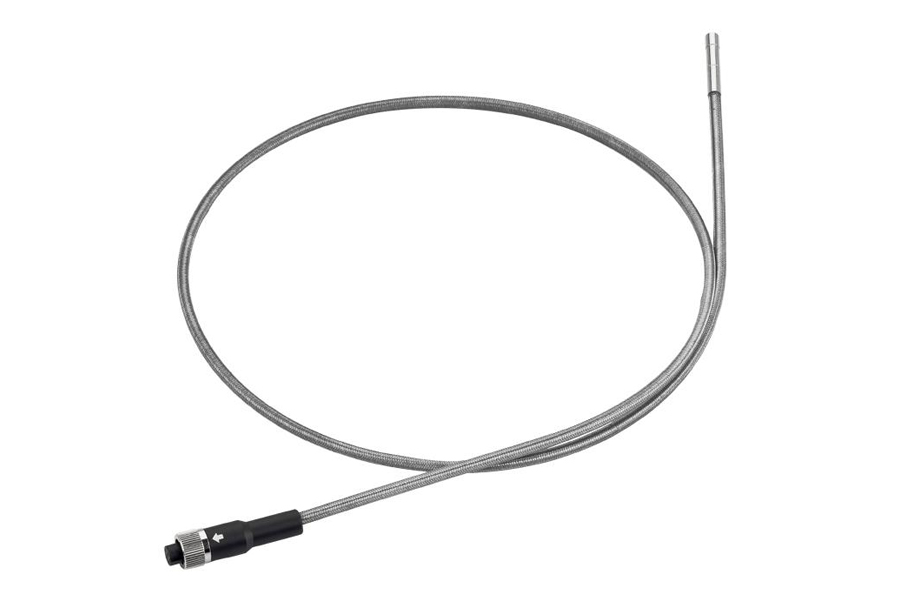

Flexible Probe / Metal-Braided Probe / Metal-Flexible Probe / Semi-Rigid Probe
◎ CMOS image sensor resolution
◎ Waterproof IP57
◎ Working length: 1M/2M/3M/5M/10M/20M/30M
◎ Probe type: Flexible Probe/ Semi-Rigid Probe/Metal-Braided Probe/ Metal-Flexible Probe
◎ HD: High sensitivity lens could provide higher quality image with real color
◎ IR: Lens equips with IR LED to do secret inspection in dark environment
◎ Standard probe can support 4 kinds of probe type：
Flexible Probe / Metal-Braided Probe / Metal-Flexible Probe / Semi-Rigid Probe
◎ CMOS image sensor resolution
◎ Waterproof IP57
◎ Working length: 1M/2M/3M/5M/10M/20M/30M
◎ Probe type: Flexible Probe/ Semi-Rigid Probe/Metal-Braided Probe/ Metal-Flexible Probe
◎ HD: High sensitivity lens could provide higher quality image with real color
◎ IR: Lens equips with IR LED to do secret inspection in dark environment
| Outside Diameter mm |
DOV | Probe Type
Flexible
Metal
Braided Metal
Flexible Semi Rigid
|
DOF mm |
FOV |
Length |
Resolution pixels |
|||
|---|---|---|---|---|---|---|---|---|---|
| OD3.9 | 0° |
O
|
O | O | O | 10-50 | 110° | 1-30 | 400,000 |
| OD3.9 Anti IR | 0° |
O
|
O | O | O | 10-50 | 110° | 1-30 | 400,000 |
|
OD4.3 |
0° |
O
|
O | O | O | 10-50 | 110° | 1-30 | 400,000 |
| OD5.5 HD | 0° |
O
|
O | O | 20-70 | 67° | 1-30 | HQ450,000 | |
| OD6.0 | 0° |
O
|
O | O | 20-70 | 110° | 1-30 | HQ450,000 | |
| OD5.8 | 0° |
|
O | 20-70 | 67° | 1-30 | HD1,000,000 | ||
| OD6.5 | 90° |
O
|
O | O | 7/20-70 | 67° | 1-30 | HD1,000,000 | |
| OD8.0 | 0° |
O
|
O | O | O | 20-70 | 90° | 1-30 | HD1,000,000 |
| OD8.0 IR | 0° |
O
|
O | O | O | 80-∞ | 90° | 1-30 | HD1,000,000 |
| OD12 | 0° |
O
|
O | O | 80-∞ | 90° | 1-30 | HD1,000,000 | |
| OD16 | 0° |
O
|
O | O | 80-∞ | 90° | 1-30 | HD1,000,000 | |
